Springs Division >> Plant Machinery

S.No.	Name of Machinery	Model	Make	Machine No.	Year of Build	Quantity	Range/Capacity
01.	Covered Space for storing Raw Material manufacturing arranging Inspection Testing finishes items awaiting dispatch	-	-	-	1988	1	46380 Square Feet
02.	Straightening Machine	BEC-65	Bhambra Engineering Kolkata	SM-1 SM-2	1988 1995	1 Nos. 1 Nos.	Straightening of Bars (Accuracy 0-1 mm/meter Length) Bar dia 10 mm to 65 mm Max length 12000 mm
03.	Bar peeling Machine	BEC-65	Bhambra Engineering Kolkata	PM-1 PM-2 PM-3 PM-4	1988 1988 2003 2004	4 Nos.	Peeling machine equipped with cutter head, rod clamping & unclamping device capable of removing 2.5mm on dia in single pass Bar dia 10 mm to 65 mm Max length 12000 mm
04.	Centreless Grinder Machine	AMT-65	Ajit Machine Tools Riat Grinder	CGM-1 CGM-2 CGM-3 CGM-4	1988 1988 2008 2010	4 No.	Bar dia 10 mm to 65 mm Max. length 12000 mm Surface finish of 2.5 microns Ra value & material removal of min. 0.25mm on dia in single pass
05.	End Heating Furnace	FEC-1200	FEC , Kanpur	HF-1	1988	1 Nos.	Oil fired indirectly heating furnace with temperature indicators ,controller & recorder having conveyor to transport continuous the bars first- in first-out system Temp. upto 1000 C
06.	Taper Roiling Machine	FEC-65 FEC-30	F.E.C. , Kanpur.	TRM-1 TRM-2	1988 1996	2 No.	Bar Dia 10 mm to 65 mm Taper Rolling Machine equipped with suitable size dies having adjustable feature and having provision of adjusting it to produce require taper extension is available. The machine have provision for stamping of the required particulars in it
07.	Coiling Furnace	DYTM-1200	Dynatech. , Mumbai	CF-1 CF-2	1988 1995	2 No.	Temp. 1000 C Oil Fired indirect heating type walking beam hardening furnace fitted with North American Burner & High pressure blower with heating pumping unit self regulated oil & air value furnace is also fitted with automatic temp. controller and recorder type to maintain the temp. & furnace length 12.0 meter.
08.	CNC Coiling Machine	BEF-1000	Beco Engg. Works , Faridabad	CM-1 CM-2	1988 1995	2 No.	CNC Coiling Machine 3 Speed Automatic Spring Coiling pitching Machine equipped with end closing system Coil Spring Bar upto 65 mm OD 500 mm Max. length 1100 mm Max .

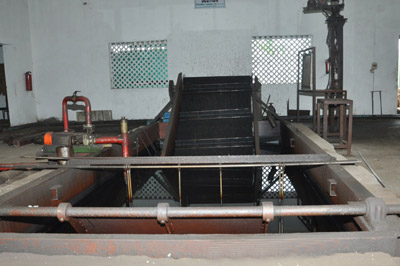

09.	Quenching Tank.	FEC	FEC , Kanpur	QT-1 QT-2	1988 1995	2 No.	Quenching oil capacity 24 KL Quenching Tank equipped with Filters, agitation pumps, heat exchangers, cooling towers, temperature indicator, etc. to prevent oil temperature going beyond 80ºC and provision of conveyorised system
10.	Tempering Furnace	WC-600	Wesman , Kolkata	TF-1 TF-02	1988	1 No.	Tempering Furnace Oil Fired indirect heating double zone type conveyorise furnace fitted with North American Burner with high pressure Blower with heating pumping unit . Furnace is also fitted with automatic temp. controller and recorder type pyrometer to maintain the temp. required range. The furnace conveyor is fitted with variable speed pulley drive in order to achieve variable socking time inside the furnace according to bar dia. Temp. 350 C-550 CBar dia 10 mm to 65 mm Max. length 12000 mm
11.	Scragging Machine (quick succession)	AAD-20 AAD-10 AAD-50	Advance Automation, Delhi	SM-1 SM-2 SM-3	1988 1995 1998		20 MT Load 10 MT load 50 MT load scragging machines capable of scragging the springs in quick succession available. The machine of adequate tonnage to scrag the springs to solid height. It capable of applying the load for long duration of 48 hours as described in UIC-822 up to 500 OD & 1100 mm height
12.	End Grinding Machine (Wet Type)	WET TYPE	FEC, Kanpur	EGM-1 EGM-2 EGM-3 EGM-4 EGM-5 EGM-6 EGM-7	1988 1988 1988 1995 1996 2001 2006	7 No.	Spring OD 50 to 500 mm length 150 to 1000 mm End grinding machines equipped with adequate coolant facility to prevent burning of end coils during grinding.
13.	Shot peening machine	ILM-1000/500	Indabrator Ltd. , Mumbai	SM-1 SM-2	1988 1996	2 No.	Coil Spring length 1000 mm coil spring OD max. 500 mm A continuous type shot peening machine equipped with automatic spring transportation system and rotation during shot peening to achieve required almen intensity.
14.	Powder Coating m/c	CT-100	Crescent Technologies	PC-1 PC-2	1995 2016	2 No.	Suitable Capacity
15.	Packing machine	S219100	Strapex India ltd.	PM-1 PM-2	1998 2004	2 No.	Suitable Capacity
